Tangents to Circles



A tangent is a line within the airplane of a circle that intersects the circle in precisely one level. Line ok within the diagram above is a tangent.

Level of Tangency :

The purpose the place a tangent line touches the circle. Level m within the diagram above is the purpose of tangency.

Frequent Tangent :

A line or section that’s tangent to 2 coplanar circles is named a standard tangent.

Theorems

Theorem 1 :

If a line is tangent to circle, then it’s perpendicular to the radius drawn to the purpose of tangency.

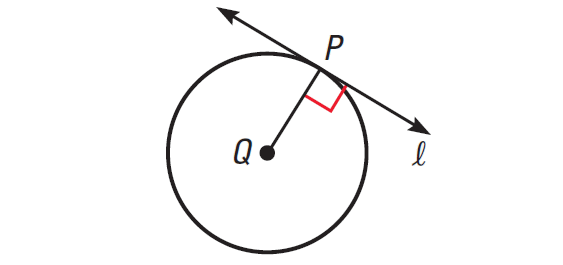

Within the diagram proven under, if l is tangent to circle Q at P, then l ⊥ QP.

Theorem 2 :

If a airplane, if a line is perpendicular to a radius of a circle at its endpoint on the circle, then the road is tangent to the circle.

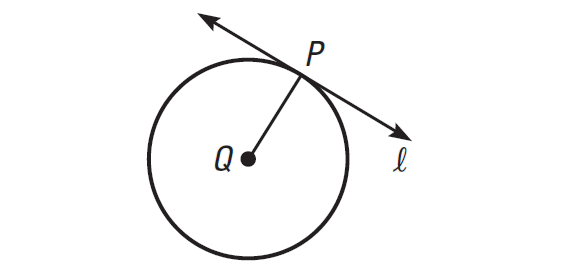

Within the diagram proven under, if l ⊥ QP at P, then  l is tangent to circle Q.

From a degree in a circle’s exterior, we are able to draw precisely two totally different tangents to the circle. The next theorem tells us the segments becoming a member of the exterior level to the 2 factors of tangency are congruent.

Theorem 3 :

If two segments from the identical exterior factors are tangent to a circle, then they’re congruent.

Within the diagram proven under, if SR and ST are tangent to circle P, then SR  ≅  ST.

Figuring out Tangent to a Circle

Instance 1 :

Inform which line or section is greatest described as a tangent within the diagram proven under.

Resolution :

EG is a tangent, as a result of it intersects the circle in a single level.

Figuring out Frequent Tangents

Instance 2 :

Within the diagram proven under, inform whether or not the widespread tangents are inside or exterior.

Resolution :

The traces j and ok intersect CD, they’re widespread inside tangents.

Instance 3 :

Within the diagram proven under, inform whether or not the widespread tangents are inside or exterior.

Resolution :

The traces m and n don’t intersect AB, so they’re widespread exterior tangents.

Tangent in Coordinate Geometry

Instance 4 :

Within the diagram proven under, describe all widespread tangent and establish the purpose of tangency.

Resolution :

The vertical line x  =  8 is the one widespread tangent of the 2 circles.

The purpose of tangency is (8, 4).

Observe :

The purpose at which a tangent line intersects the circle to which it’s tangent is the purpose of tangency.

Verifying a Tangent to a Circle

Instance 5 :

Within the diagram proven under, say whether or not EF is tangent to the circle with middle at D.

Resolution :

We are able to use the Converse of the Pythagorean Theorem to say whether or not EF is tangent to circle with middle at D.

As a result of 112 + 602  =  612, ΔDEF is a proper triangle and DE is perpendicular to EF.

So by Theorem 2 given above, EF is tangent to the circle with middle at D.

Discovering the Radius of a Circle

Instance 6 :

Within the diagram proven under, I’m standing at C, 8 ft from a grain silo. The gap from me to a degree of tangency is 16 ft. What’s the radius of the silo ?

Resolution :

By the Theorem 1 given above,  tangent BC is perpendicular to radius AB at B. So ΔABC is a proper triangle. So we are able to use the Pythagorean theorem.

Pythagorean Theorem :

(r + 8)2  =  r2 + 162

Sq. of binomial :

r2 + 16r + 64  =  r2 + 256

Subtract r2 from all sides :

16r + 64  =  256

Subtract 64 from all sides :

16r  =  192

Divide all sides by 16.

r  =  12

Therefore, the radius of the silo is 12 ft.

Utilizing Properties of Tangents

Instance 7 :

Within the diagram proven under,

AB is tangent at B to the circle with middle at C

AD is tangent at D to the circle with middle at C

Discover the worth of x.

Resolution :

By the Theorem 3 given above, two tangent segments from the identical level are congruent.

AB  =  AD

Substitute :

x2 + 2  =  11

Subtract 2 from all sides.

x2  =  9

Take sq. root on all sides.

x  =  ± 3

Therefore, the worth of x is 3 or -3.
